CVD model

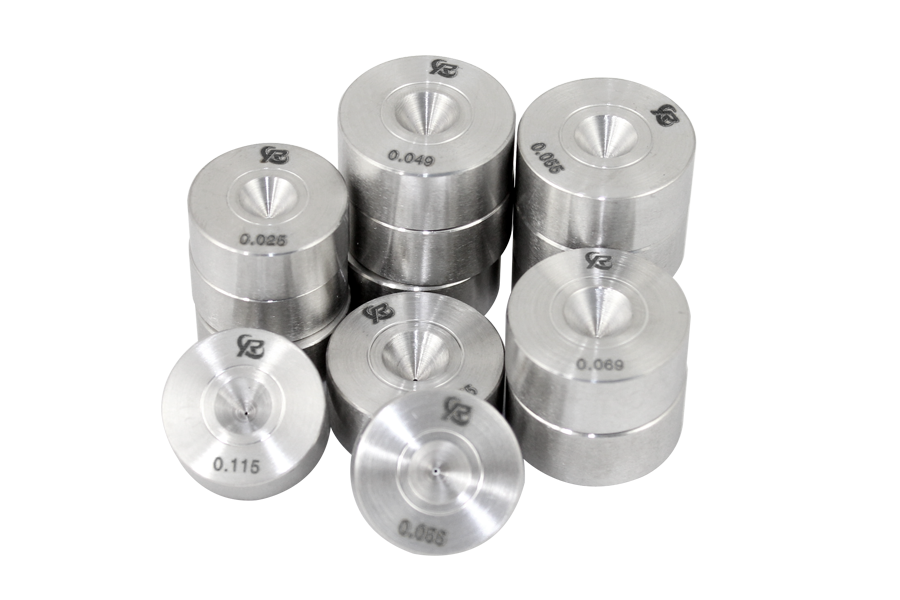

CVD diamond is pure diamond polycrystalline structure, good brightness, high hardness, good abrasion resistance, integrated the advantages of single crystal and polycrystalline diamond wire drawing die, can be used for stainless steel, tungsten, molybdenum, copper, aluminum and other metal wire drawing.
Standard product catalogue
| Model | Inscribed circle diameter (mm) | The thickness of the standard (mm) | Wire drawing die aperture (mm) |
Recommended maximum aperture (mm) |
||
| CVD1508 | 1.5 | ≥ 0.8 | 0.05-0.15 | 0.15 | ||
| CVD2010 | 2.0 | ≥ 1.0 | 0.10-0.20 | 0.20 | ||
| CVD2512 | 2.5 | ≥ 1.2 | 0.20-0.30 | 0.30 | ||
| CVD3015 | 3.0 | ≥ 1.5 | 0.30-0.70 | 0.70 | ||
| CVD4020 | 4.0 | ≥ 2.0 | 0.60-1.20 | 1.20 | ||
