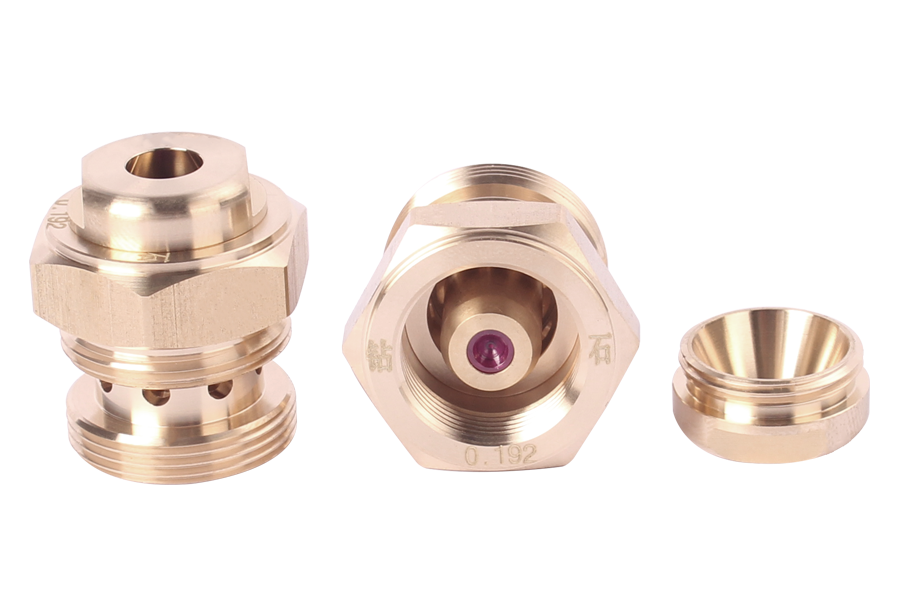

The cutting water nozzle
Thread cutting water nozzle through high-quality selection of natural diamond, ruby, white stones, CVD diamond as the raw material, through the special set set of process, ensure each mold concentricity finish, tolerance of precision, cutting out a smooth surface.
Standard product catalogue
| Trimmed size (mm) | The tolerance (mm) | Roundness (mm) |
| 0.115 | ± 0.001 | 0.0005 |
| 0.170 | ± 0.001 | 0.0005 |
| 0.192 | ± 0.001 | 0.0005 |
| 0.195 | ± 0.001 | 0.0005 |
| 0.210 | ± 0.001 | 0.00075 |
| 0.215 | ± 0.001 | 0.00075 |
| 0.320 | ± 0.001 | 0.00075 |
| 1.010 | ± 0.001 | 0.00075 |
